Fungsi : Alat Deteksi gas di area kerja
Parameters yang diukur Range
▪ LEL (Low Explosive Limit) : 0-100 ppm
▪ O2 (Oxygen) : 25% vol
▪ CO (Carbon Monoxide) : 0-999 ppm
▪ SO2 (Sulfur Dioxide) : 0-20 ppm
▪ H2S (Hydrogen Sulfide) : 0-100 ppm
▪ CO2 (Carbon Dioxide) : 0.00-5.00% vol
▪ NO2 (Nitrogen Dioxide) : 0-100 ppm
▪ O3 (Ozone) : 0-100 ppm
▪ NH3 (Ammonia) : 0-100 ppm
▪ HCHO (Formaldehyde) : 0.0-5.0 ppm
▪ VOC (Volatic Organic Compound) : 0-50 ppm
Spesifikasi alat :

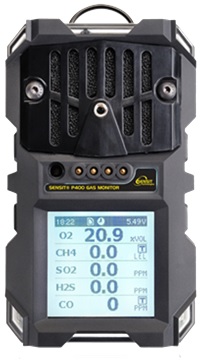

a. Multigas 5 parameter
▪ Parameters : LEL, O2, CO, H2S and SO2
▪ Size / weight : 13.2 x 8.1 x 4.0 cm / 340 gr
▪ Temp. operating : (-20 to 50° C)
▪ Humidity : 10 - 90% RH (Non-condensing)
▪ Power Source : 4 “AA” Alkaline or NiMH Recharger Pack (charge with NiMH Battery Pack)
▪ Battery Life : 24 Hr. Alkaline or 15 Hr. NiMH
▪ Sound : 98db @ 15” (30cm)
▪ Approval
- UL 7WA6
- For Class 1, Division 1, Groups A, B, C and D Hazardous locations
- when used with approved alkaline batteries or rechargeable
- battery pack. IP65
- Temp code: T4, -20° C to 50° C
- CЄ 0891 Єx II 2 G
- Ex d ia IIC T4, Gb, IP65
- -20° C to 50° C
- DEMKO
b. CO2 and NO2 Detection
▪ Resolution : CO2: 1ppm
: NO2: 0.1ppm
▪ Sensor : Infrared and Electrochemical Sensor
▪ Alarm : Audible--buzzer with ≥75dB audible, Visible--flashing red LED, ≥20m visible
▪ Display : Liquid Crystal Display(LCD)
▪ Response time : CO2: ≤50S ( T90 )
NO2: ≤45s (T90)
▪ Size/weight : 130*66*30mm, 500g
c. Ozone Meter
▪ Resolution : 0.02ppm, 0.03ppm
▪ Sensor : Membrapor/CITY Electrochemical Sensor
▪ Response time : ≤45s(T90)
▪ Alarms : Audible--buzzer with ≥75dB audible
Visible--flashing red LED, ≥20m visible
▪ Display : Liquid crystal display (LCD)
▪ Size/weight : 105*54*32mm/450g
