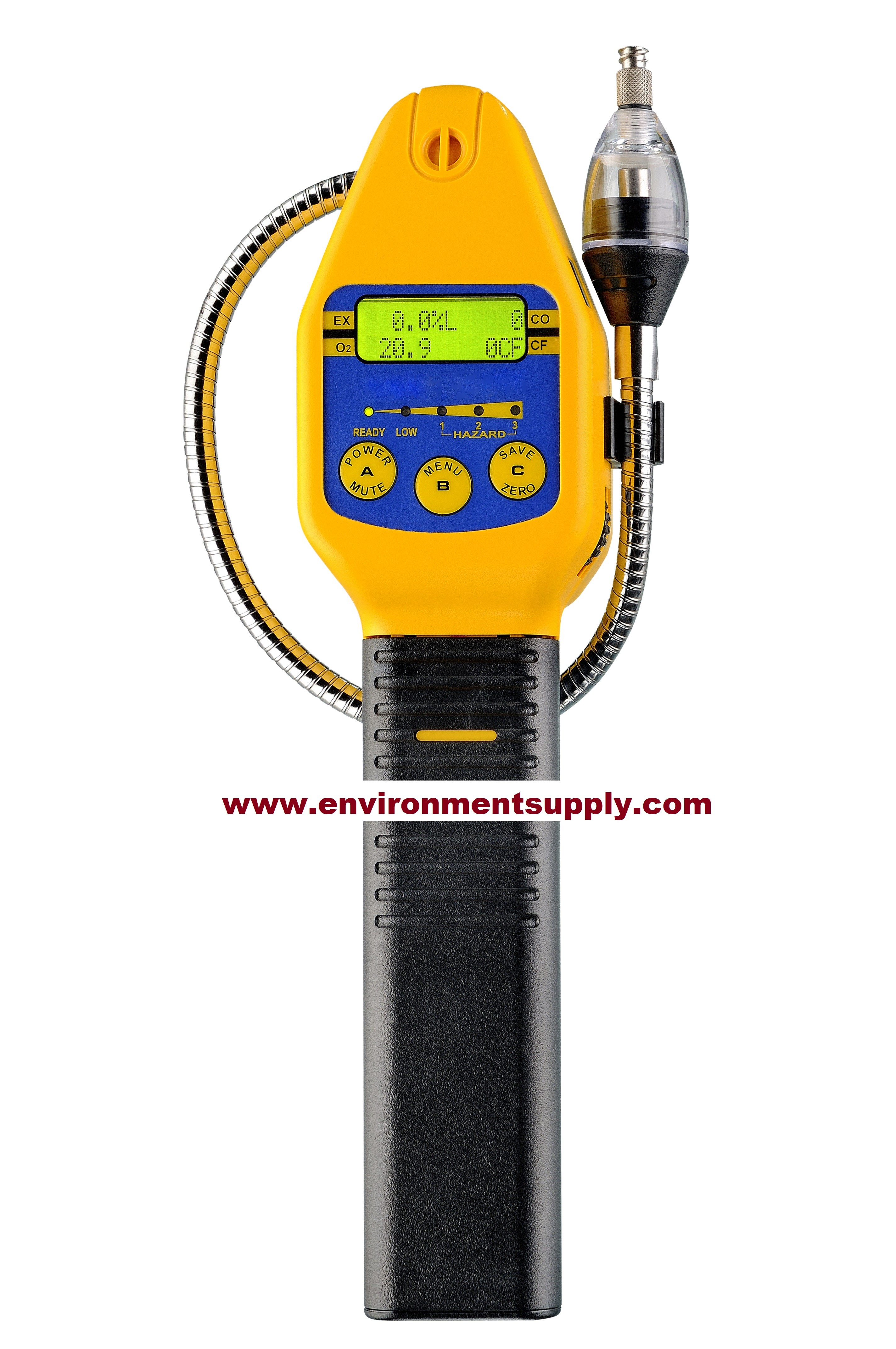

Portable Multi-Gas Detector

Specification :

▪

Parameters Range

  LEL

:

0-100% LEL

  H2S

:

0-100ppm

▪

Pump

:

Internal

▪

Size

:

29.2 x 7.6 x 5.9 cm

▪

Weight

:

Approx 0.5 kg

▪

Operational Temp

:

-20 to 120 F (-28.9 to 48.9° C)

▪

Battery Life

:

Alkaline : Approximately 16 hrs

▪

Datalogging Option

:

100 Instant Event Saves

1600 Auto Log Saves

100 Bar Hole Tests

▪

Approval

  a. Approved C22.2

      No. 152 and C22.2 No. 157

      For Exia Class I, Div. 1, Groups C & D, T3

       hazardous locations when used with Duracell MN1400BK

       batteries or equivalent alkaline cells.

  b. Instrument are approved UL913,

       For Class 1, Division 1, Groups C and D hazardous locations

       when used with Duracell MN1400BK batteries or equivalent

       alkaline batteries.

▪

Standard Unit

       Main unit includes with : LEL and CO (auto log memory)

       Hard Carrying Case

       3 “C” Batteries Extra Sensor Cap Wrist Strap

       Instruction Manual
