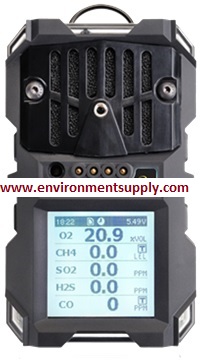

Portable Multigas Monitor

Specification :

▪

LEL

:

0-100 ppm

▪

O2

:

25% vol

▪

CO

:

0-999 ppm

▪

SO2

:

0-20 ppm

▪

NO2

:

0-250 ppm

▪

H2S

:

0-100 ppm

▪

Size / weight

:

13.2 x 8.1 x 4.0 cm / 340 gr

▪

Operational Temp

:

(-20 to 50° C)

▪

Humidity

:

10 - 90% RH (Non-condensing)

▪

Power Source

:

4 “AA” Alkaline or NiMH Recharger Pack

(charge with NiMH Battery Pack)

▪

Battery Life

:

24 Hr. Alkaline or 15 Hr. NiMH

▪

Sound

:

98db @ 15” (30cm)

▪

Approval

   a. UL 7WA6

       For Class 1, Division 1, Groups A, B, C and D Hazardous locations

       when used with approved alkaline batteries or rechargeable

       battery pack. IP65

       Temp code: T4, -20° C to 50° C

 b. CЄ 0891 Єx II 2 G

       Ex d ia IIC T4, Gb, IP65

       -20° C to 50° C

       DEMKO 12 ATEX 1102012

Optional :

4 Gas : LEL, O2, CO, H2S with Pump

5 Gas : LEL, O2, CO/H2S, SO2 with Pump

5 Gas : LEL, O2, CO/H2S, NO2 with Pump
